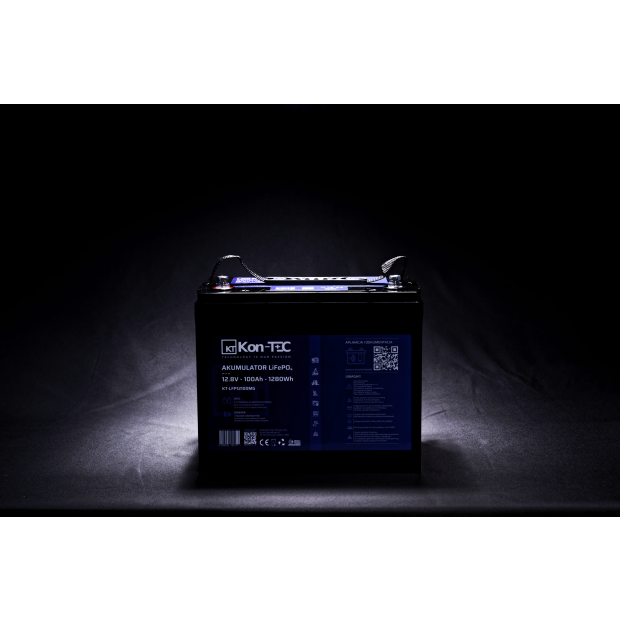

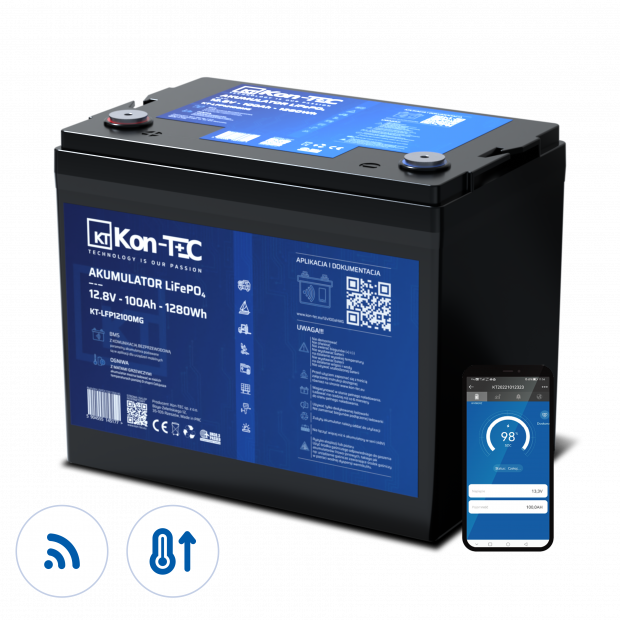

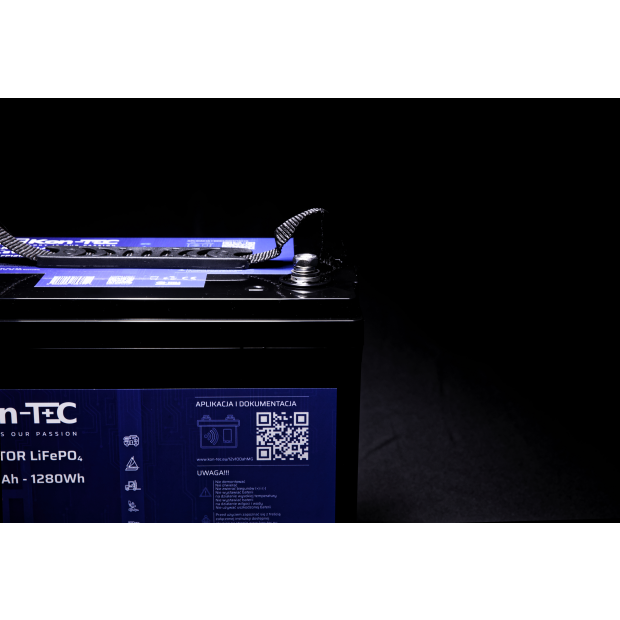

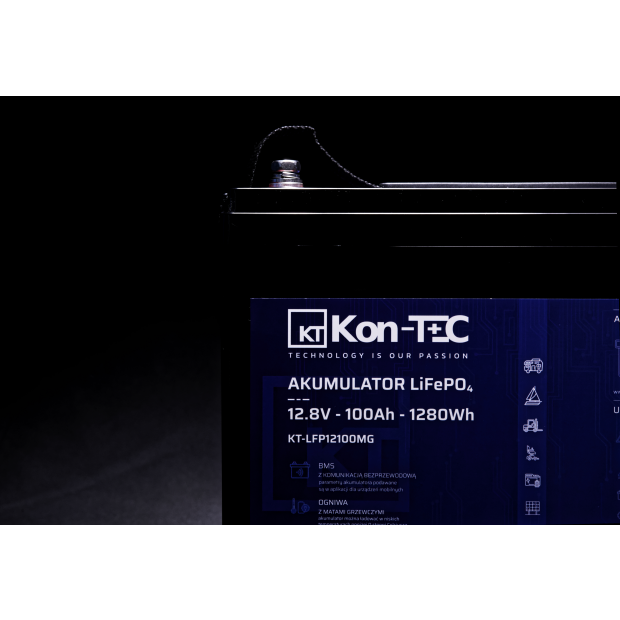

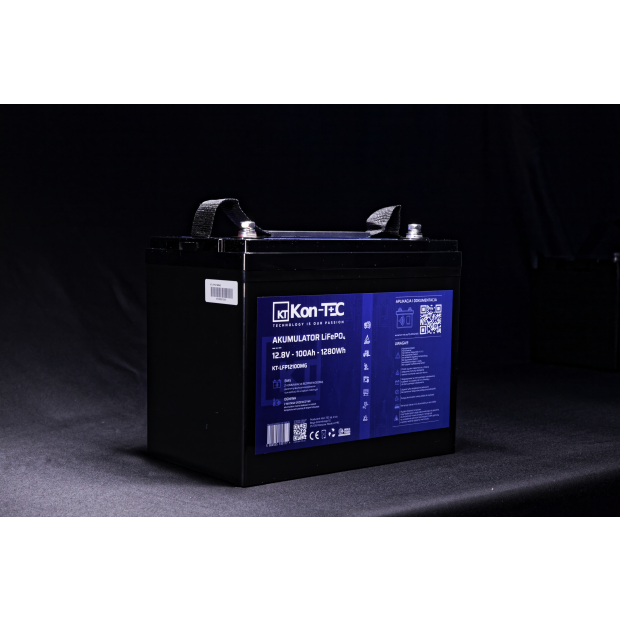

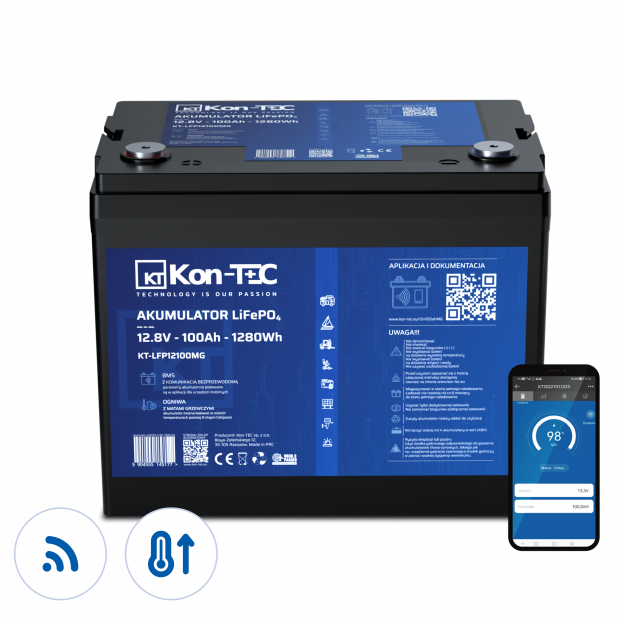

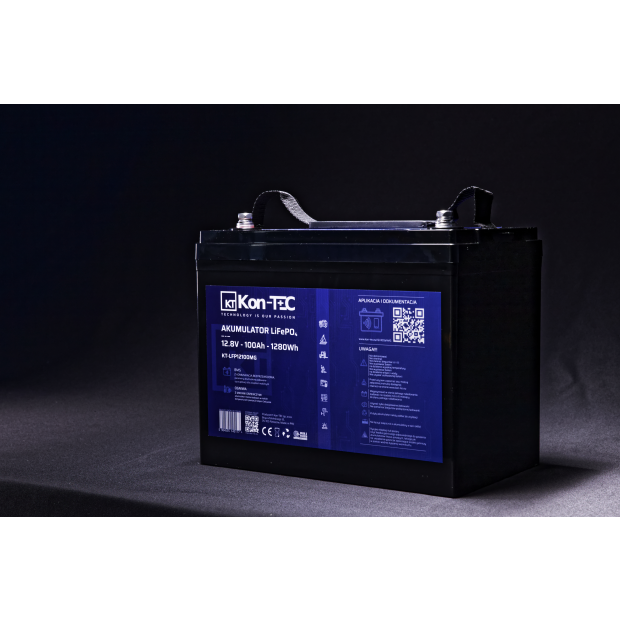

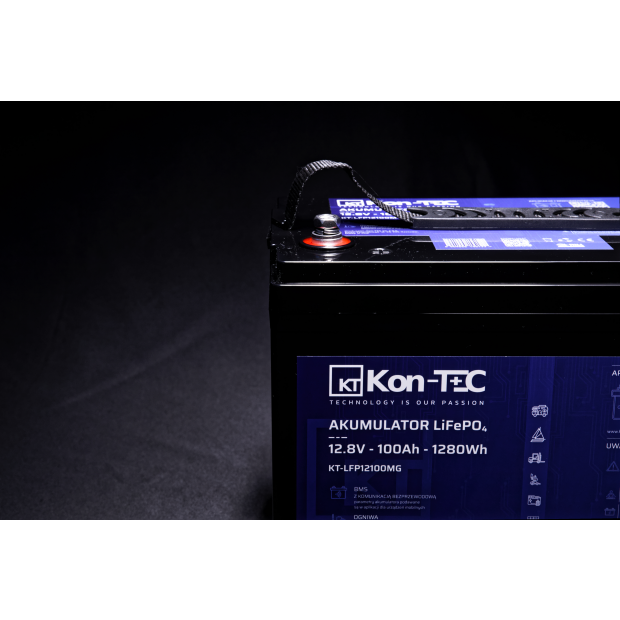

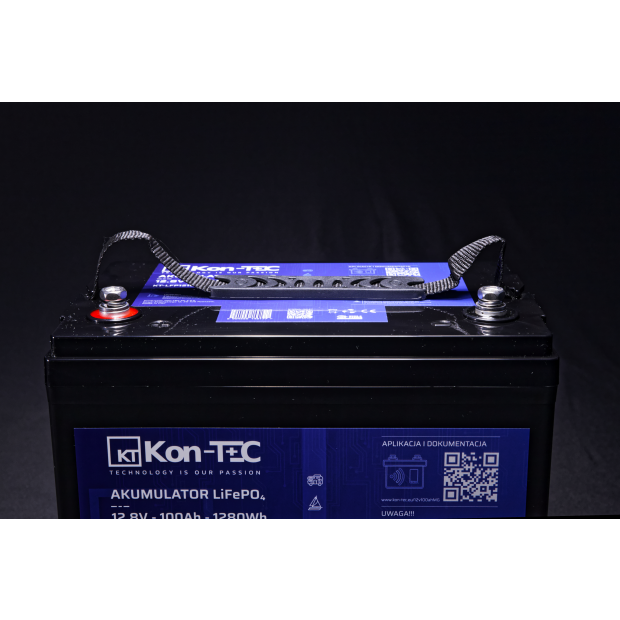

Battery LiFePO4 12V (12,8V) 100Ah Kon-TEC Heating pads

(0)
Product ID: 01.08
Have questions? Call us! +48 572 001 150
Technical Parameters
Nominal voltage: 12.8 V
Capacity: 100 Ah
Energy: 1280 Wh
Continuous discharge current: 100 A
Recommended charge current: 50 A
Maximum charge current: 100A
Operating temperature: -20°C~60°C
Charging temperatue: -20°C~45°C
Weight: 11,2 kg
Length (1 pcs): 30,7 cm
Width (1 pcs): 16.8 cm
Height (1 pcs): 21 cm
Communication: Wireless
Application: yes, Android i iOS
Warranty: 5 lat
Heating pads: Yes
Lifetime - number of cycles (60% DoD): 6000
Lifetime - number of cycles (80% DoD): 4500
Lifetime: 3000
Full Specification
€626.22
€509.12 net
Najniższa cena w ciągu ostatnich 30 dni: €626.22
Have questions? Call us! +48 572 001 150

Technical Parameters

  • Nominal voltage: 12.8 V
  • Capacity: 100 Ah
  • Energy: 1280 Wh
  • Continuous discharge current: 100 A
  • Recommended charge current: 50 A
  • Maximum charge current: 100A
  • Operating temperature: -20°C~60°C
  • Charging temperatue: -20°C~45°C
  • Weight: 11,2 kg
  • Length (1 pcs): 30,7 cm
  • Width (1 pcs): 16.8 cm
  • Height (1 pcs): 21 cm
  • Communication: Wireless
  • Application: yes, Android i iOS
  • Warranty: 5 lat
  • Heating pads: Yes
  • Lifetime - number of cycles (60% DoD): 6000
  • Lifetime - number of cycles (80% DoD): 4500
  • Lifetime: 3000

Some Possible Applications

  • Alternative to SLA Batteries (Lead-Acid and Gel)
  • Caravans and Motorhomes
  • Specialized Electric Vehicles
  • Electric Drives
  • Yachts, Catamarans, Houseboats
  • Wheelchairs and Vehicles for the Disabled
  • Hybrid Photovoltaic Systems
  • Wind Turbines
  • Emergency Lighting
  • Devices and Toys 12V
  • Power Source for 12V~/230V~ Inverters
    and more

Here are the reasons why it's worth choosing our 12V 100Ah LiFePO4 Kon-TEC battery:



Heating mats and wireless communication

Kon-TEC MG batteries can be charged in low temperatures (below 0 degrees Celsius)



Integrated wireless communication with the Battery Management System (BMS). It provides communication between the battery and the mobile device and allows monitoring battery parameters in real-time.



I. Weight and power of the batteries

12V 100Ah LiFePO4 Kon-TEC batteries are half the weight and provide more power than traditional lead-acid, gel, or AGM batteries.



II. High energy efficiency

Our lithium-ion batteries have very high efficiency (approximately 99%) and low internal resistance, allowing for fast charging with low energy losses. In comparison, lead-acid batteries lose power much faster during discharge.



III. Full utilization of capacity potential

Kon-TEC LiFePO4 batteries ensure the use of 100% nominal capacity regardless of the current discharge. In contrast, lead-acid batteries provide significantly less usable energy under higher loads. They are usually limited to only 50% of nominal capacity to prevent a reduction in lifespan.



IV. Very high durability

The lifespan of Kon-TEC LiFePO4 batteries is approximately 3000 cycles (full charge and discharge), 4500 cycles at 80% Depth of Discharge (DoD), and 6000 cycles at 60% DoD, depending on the battery discharge. In comparison, a lead-acid battery for photovoltaics at the same discharge level usually withstands only about 200-300 cycles. The greater the degree of battery discharge, the shorter its lifespan.



V. Performance benefits

The costs of Li-ion batteries may seem high upfront, but the investment made in their purchase results in significant long-term savings. Kon-TEC LiFe-PO4 batteries provide much higher efficiency and lifespan than traditional lead-acid batteries. Ultimately, this means much lower operating costs, replacement costs, and minimized downtime.



VI. Wireless communication

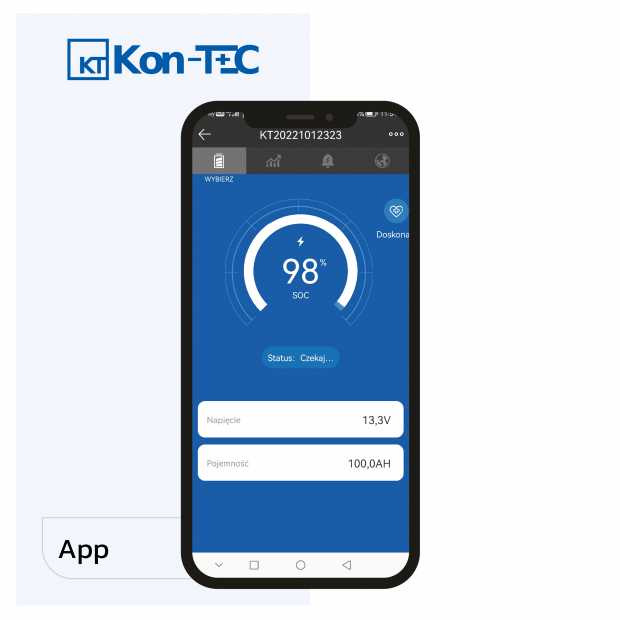

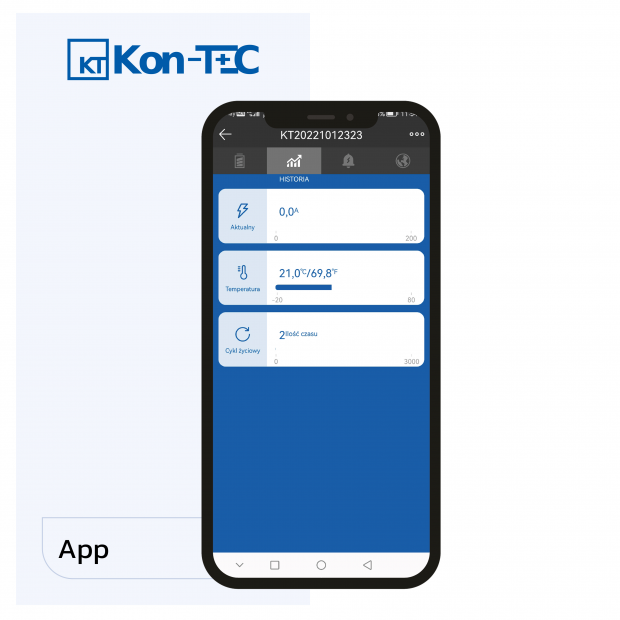

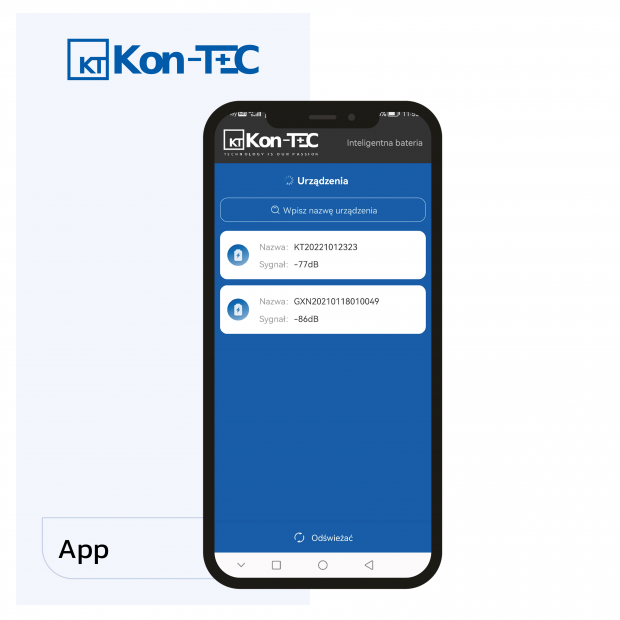

Batteries are equipped with wireless communication. Using a special application allows tracking the battery charge level and its lifespan.



VII. 5-year warranty

The high quality of our batteries allows us to provide a five-year warranty on them.



DESPITE THE HIGHER COST OF PURCHASING THE 12V 100Ah LiFePO4 KON-TEC BATTERY, IT IS MORE COST-EFFECTIVE THAN THE CLASSIC GEL/AGM.



BMS

The battery is protected by the Battery Management System (BMS) from improper use, protecting against:

Overcharging,
Excessive discharge,
Reverse polarization,
Overheating, short-circuiting.
This practically prevents its damage, significantly extending its lifespan. The presented battery can be connected in series to achieve a higher voltage and in parallel to increase capacity. The maximum continuous working current is 100A.

LiFePO4 batteries can be used in a very wide temperature range from -20 to 60 degrees Celsius. Thanks to the use of heating mats, it can also be charged in the range of -20 to 45 degrees Celsius.



Recommended accessories:



Standard chargers:

10 hours charging - Kon-TEC LiFePO4 12V 10A DL240 Charger
5 hours charging - Kon-TEC LiFePO4 12V 20A DL400 Charger



Standard chargers in series connections:

24V: 5 hours charging - Kon-TEC LiFePO4 24V 20A DL900 Charger and Balancer 24V Kon-TEC LiFePO4 KT01
48V: 5 hours charging - Kon-TEC LiFePO4 48V 20A DL1200 Charger and Balancer 48V Kon-TEC LiFePO4 KT02



Waterproof chargers:

6.6 hours charging - Waterproof Kon-TEC LiFePO4 12V 15A DL-300WP Charger



Waterproof chargers in series connections:

24V: 5.5 hours charging - Waterproof Kon-TEC LiFePO4 24V 18A DL-600WP Charger and Balancer 24V Kon-TEC LiFePO4 KT01
48V: 5.5 hours charging - Waterproof Kon-TEC LiFePO4 48V 18A DL-1200WP Charger and Balancer 48V Kon-TEC LiFePO4 KT022
