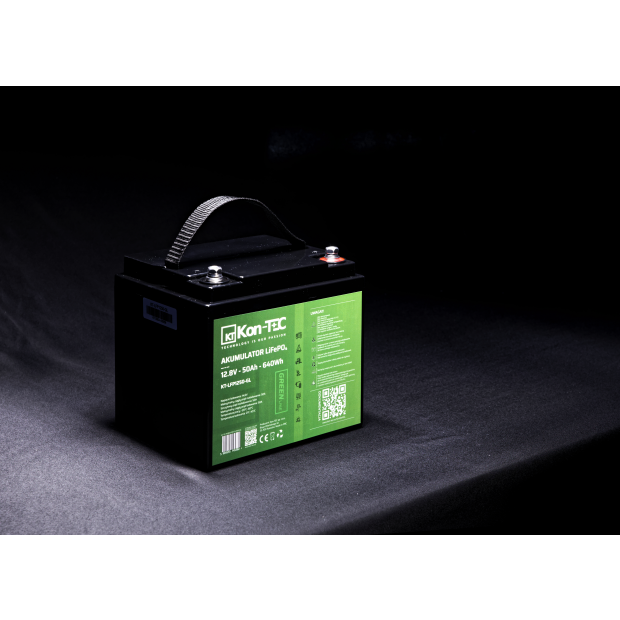

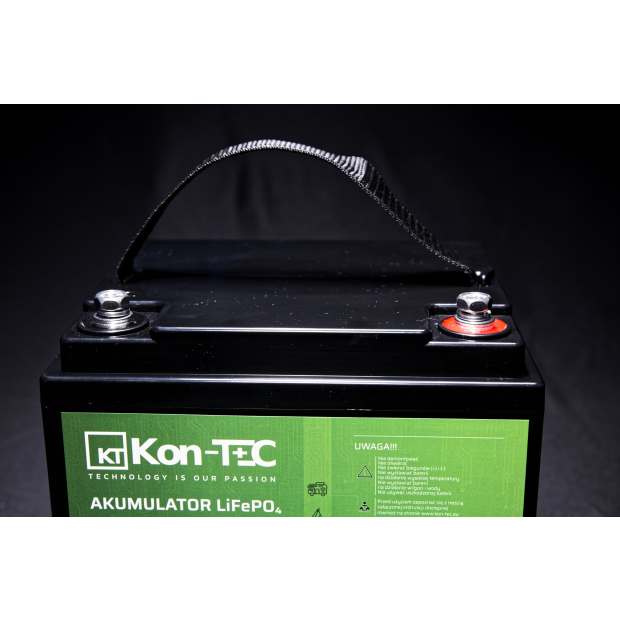

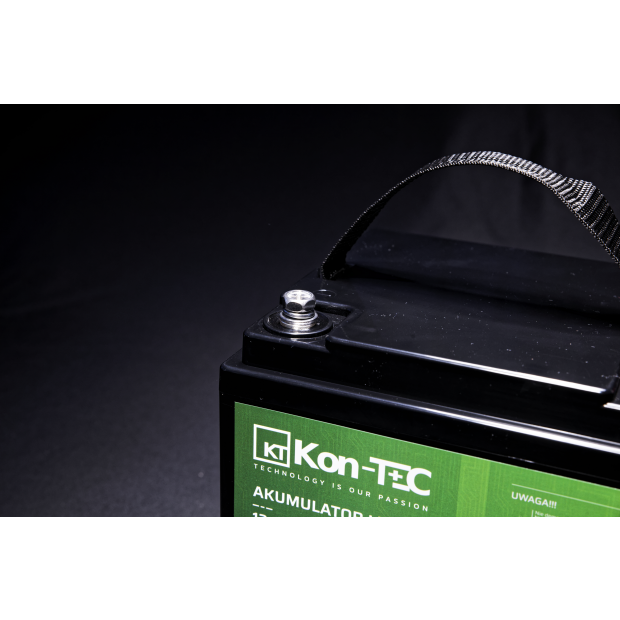

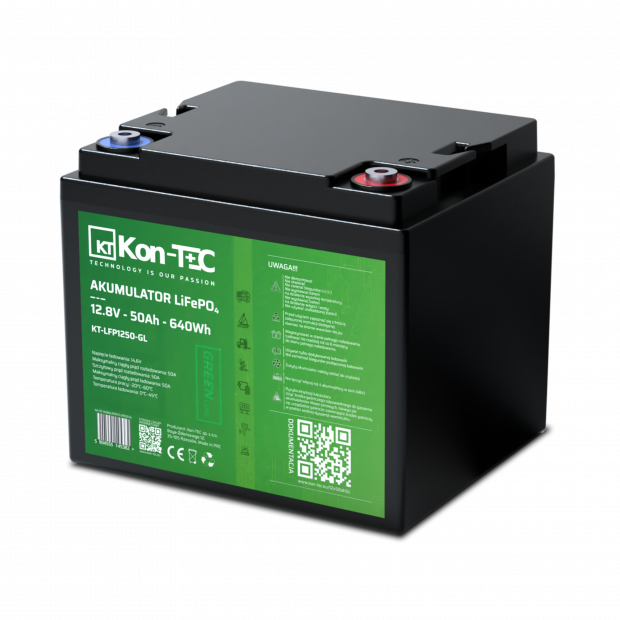

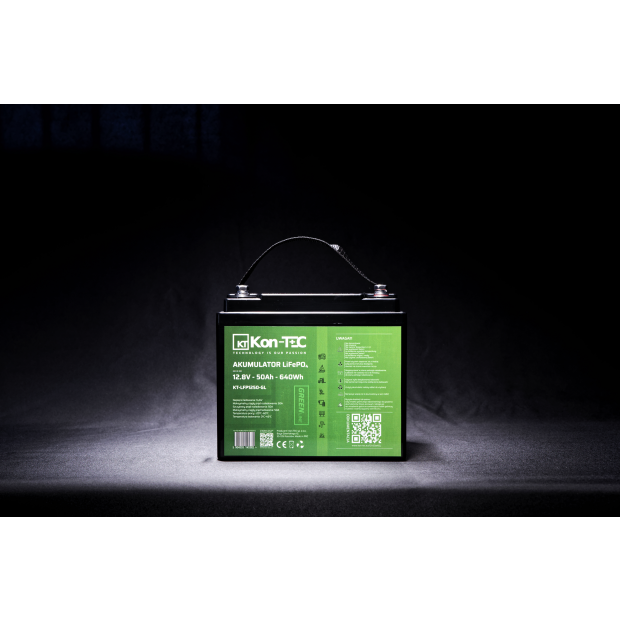

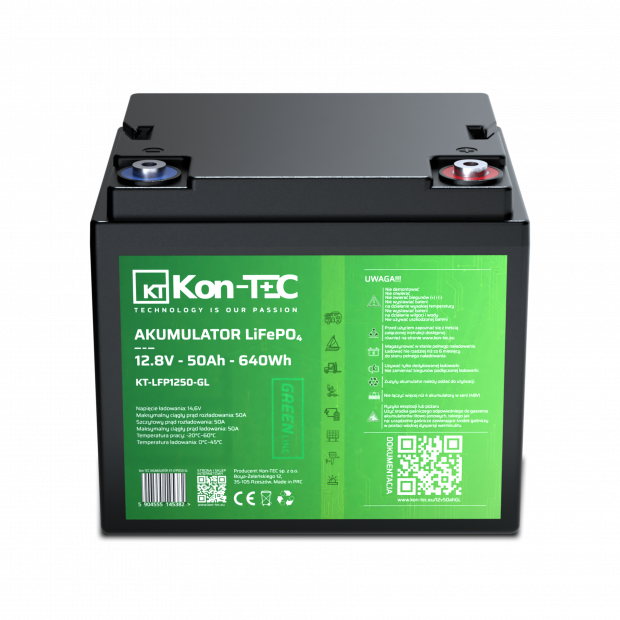

LiFePO4 Battery 12V (12,8V) 50Ah Kon-TEC GREEN LINE

(0)
Product ID: 01.23
Have questions? Call us! +48 572 001 150
Technical Parameters
Nominal voltage: 12.8 V
Capacity: 50 Ah
Energy: 640 Wh
Lifetime: 2500 Cycles
Lifetime - number of cycles (80% DoD): 3500 Cycles
Communication: None
Application: No
Heating pads: No
Warranty: 2 lata
Continuous discharge current: 50 A
Recommended charge current: 10A
Maximum charge current: 50A
Operating temperature: -20°C~60°C
Charging temperatue: 0°C~45°C
Length (1 pcs): 19.9 cm
Width (1 pcs): 17cm
Height (1 pcs): 17.5 cm
Weight: 5.2 kg
Full Specification
€209.56
€170.37 net
Available (83 szt.)
Warehouse 1: 64 szt.
Warehouse 2: 19 szt.
Have questions? Call us! +48 572 001 150

Technical Parameters

  • Nominal voltage: 12.8 V
  • Capacity: 50 Ah
  • Energy: 640 Wh
  • Lifetime: 2500 Cycles
  • Lifetime - number of cycles (80% DoD): 3500 Cycles
  • Communication: None
  • Application: No
  • Heating pads: No
  • Warranty: 2 lata
  • Continuous discharge current: 50 A
  • Recommended charge current: 10A
  • Maximum charge current: 50A
  • Operating temperature: -20°C~60°C
  • Charging temperatue: 0°C~45°C
  • Length (1 pcs): 19.9 cm
  • Width (1 pcs): 17cm
  • Height (1 pcs): 17.5 cm
  • Weight: 5.2 kg

Some Possible Applications

  • Replacement for SLA batteries (lead-acid and gel)
  • Camping trailers and motorhomes
  • Specialized electric vehicles
  • Electric drives
  • Yachts, catamarans, houseboats
  • Wheelchairs and vehicles for the disabled
  • Hybrid photovoltaic systems
  • Wind turbines
  • Emergency lighting
  • 12V devices and toys
  • Power source for 12V~/230V~ inverters
  • and more

LiFePO4 Battery 12V (12.8V) 50Ah GREEN Line Kon-TEC


Features of 12V 50Ah LiFePO4 Kon-TEC Batteries :




I. Low Weight, High Power

12V 50Ah LiFePO4 Kon-TEC batteries are half the weight and deliver greater power output than traditional lead-acid, gel, or AGM batteries. LiFePO4 batteries have a high energy density, meaning they can store a large amount of energy in a relatively small mass.



II. Fast Charging and High Energy Efficiency

LiFePO4 batteries are capable of fast charging, which can be crucial when time is of the essence. Our lithium-ion batteries have very high efficiency (around 97%) and low internal resistance, enabling rapid charging with low energy losses. In comparison, lead-acid batteries lose power much faster during discharge.



III. 100% Capacity Regardless of Load

Kon-TEC LiFePO4 batteries ensure the use of 100% nominal capacity, regardless of the load current. On the other hand, lead-acid batteries provide significantly less usable energy under higher loads. They are usually limited to only 50% of the nominal capacity to prevent reducing their lifespan.



IV. Voltage Stability

LiFePO4 batteries maintain a relatively stable voltage during discharge, which can affect the even operation of electrical devices. The voltage difference between a fully charged and a discharged LiFePO4 battery is only about 1.5~2V.



V. Very High Durability

The lifespan of Kon-TEC LiFePO4 batteries is about 2500 cycles (full charge and discharge), 3500 cycles at 80% DoD, depending on the battery discharge. In comparison, a lead-acid battery used in photovoltaic systems typically lasts only around 200-300 cycles at the same discharge level. The greater the discharge depth, the shorter the battery's lifespan. Keep in mind that after exceeding the mentioned cycle numbers, the battery still works, but its properties will deteriorate.



VI. Performance Gains

The initial cost of Li-ion batteries may seem high, but the investment made in their purchase provides enormous long-term savings. Kon-TEC LiFePO4 batteries offer much greater efficiency and lifespan compared to traditional lead-acid batteries. Ultimately, this results in significantly lower operating costs, replacement costs, and minimized downtime.

Typically, the cost of lead-acid batteries is spread over a minimum of one year, up to a maximum of three years. With LiFePO4 batteries, we can safely spread the purchase cost over five to seven years. With the maximum difference, one year with a lead-acid battery and five years with a LiFePO4 battery results in 2x to 3x lower operational costs for LiFePO4 batteries.



IX. From 12V Battery to 24V, 36V, or 48V Battery

Remember that by connecting 12V batteries in series, you can obtain 24V, 36V, or 48V. An additional recommended component for such an installation is the KT-04 balancer.



DESPITE THE HIGHER INITIAL PURCHASE COST OF THE 12V 50Ah LiFePO4 KON-TEC BATTERY, IT IS MORE COST-EFFECTIVE THAN A CLASSIC GEL/AGM BATTERY.



BMS

The battery features built-in protection against improper use, protecting it from:

  • overcharging
  • excessive discharging
  • reverse polarity
  • overheating
  • short-circuiting
  • charging at negative temperatures

This practically prevents damage to the battery, significantly extending its lifespan. The presented battery can be connected in series for higher voltage and in parallel to increase capacity. The maximum continuous operating current is 50A.

LiFePO4 Battery can be used in a very wide range of temperatures from -20 to 60 degrees Celsius.

Our battery, unlike other products available on the market, has protection that prevents charging at negative temperatures, even if it is connected to a charger. LiFePO4 batteries should not be charged below 0°C, as this can cause damage to them.

The exception is batteries with heating mats, which can be charged at negative temperatures. If you plan to use a boat in conditions requiring charging at negative temperatures, check out the battery with heating mats KT-LFP12100-GL.



Charging

Remember that to charge LiFePO4 batteries, chargers designed for lead-acid batteries should not be used. These chargers have a lower charging current and cannot fully charge a LiFePO4 battery.

Kon-TEC chargers have their own processor and PWM signal control technology. This ensures that the DL series chargers offer advantages such as high efficiency, stability of parameters, low emissions, and energy savings. Through automatic control of charging current and voltage, the charger ensures full battery charging without dangerous overcharging. During the charging process, the battery is protected. Below, you can find information on charging times for the above battery.



Standard Chargers - Charging Times - Models :

12V 10A - 5 hours charging - LiFePO4 Charger Kon-TEC DL240
12V 20A - 2.5 hours charging - LiFePO4 Charger Kon-TEC DL400


Standard Chargers for Series-connected Batteries - Charging Times - Models

24V 20A: 2.5 hours charging - LiFePO4 Charger Kon-TEC DL900 and LiFePO4 Balancer Kon-TEC KT04
48V 20A: 2.5 hours charging - LiFePO4 Charger Kon-TEC DL-1200 and LiFePO4 Balancer Kon-TEC KT04



Waterproof Chargers - Charging Times - Models

12V 15A: 3.3 hours charging - Waterproof LiFePO4 Charger Kon-TEC DL-300WP



Waterproof Chargers for Series-connected Batteries - Charging Times - Models

24V 18A: 2.77 hours charging - Waterproof LiFePO4 Charger Kon-TEC DL-600WP and LiFePO4 Balancer Kon-TEC KT01 or KT04
48V 18A: 2.77 hours charging - Waterproof LiFePO4 Charger Kon-TEC DL-1200WP and LiFePO4 Balancer Kon-TEC KT01 or KT04
