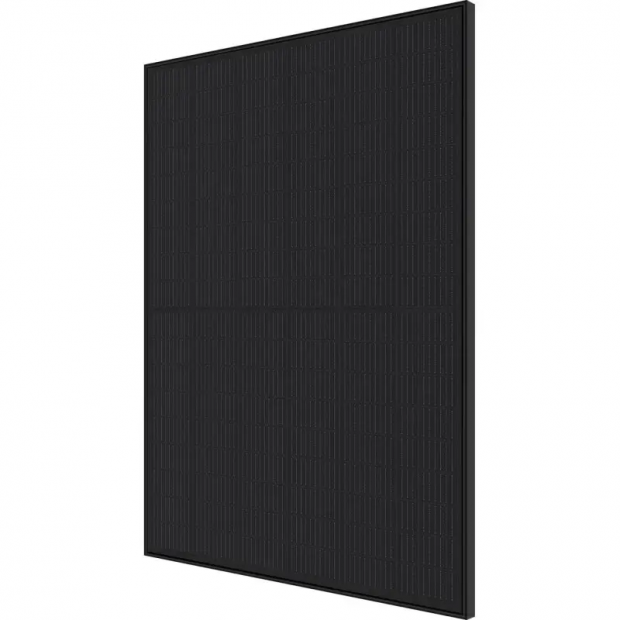

PV MODULE 500 W TOPCon bifacial full black - HT-SAAE HT60-18X(ND)-F-500

500 W TOPCon Bifacial PV Module – High Efficiency & Premium Design

The HT-SAAE HT60-18X(ND)-F-500 is a modern bifacial PV module based on advanced N-type TOPCon cell technology. Its dual-glass construction and Full Black finish combine durability with a premium aesthetic, making it ideal for contemporary solar installations.

Thanks to bifacial technology, the module generates electricity from both sides, increasing total energy yield depending on ground reflectivity. The low temperature coefficient ensures stable performance even under high ambient temperatures.

Designed for scalable renewable energy (OZE) projects, the panel fits perfectly for a single-family home, commercial business, or large-scale solar farm. It integrates seamlessly with energy storage systems and hybrid inverters, enhancing self-consumption and energy independence.

Professional installers benefit from robust mechanical strength, standard MC4 connectors, 1500 V system voltage, and long-term reliability backed by extended performance warranties.

Key Technical Specifications

• Rated power (STC): 500 Wp
• Cell technology: N-type TOPCon
• Construction: Bifacial, glass-glass
• Cell count: 108 half-cells (18×6)
• Module efficiency: approx. 22%+
• Dimensions: approx. 1961 × 1134 × 30 mm
• Weight: approx. 27 kg

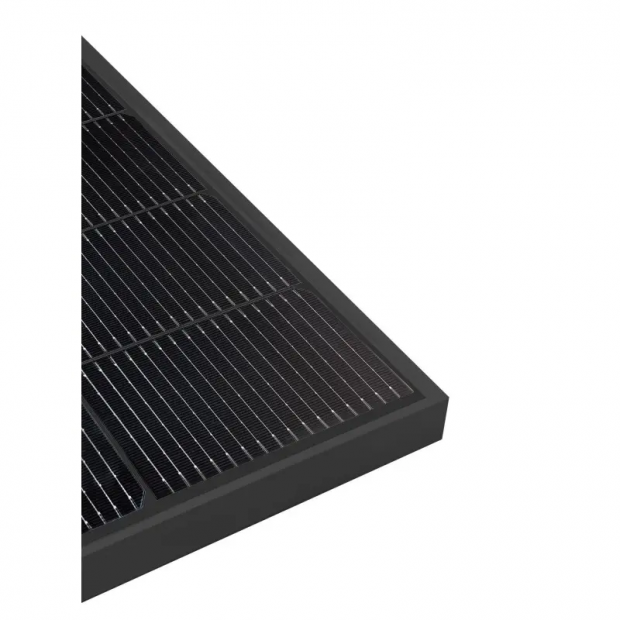

• Frame: Anodized aluminum – Full Black
• Glass: 2.0 mm / 2.0 mm tempered
• Max system voltage: 1500 V DC
• Mechanical load: 5400 Pa (snow) / 2400 Pa (wind)
• Temp. coefficient (Pmax): approx. −0.29%/°C
• Connectors: MC4 compatible
• Junction box: IP68
• Product warranty: up to 15–25 years
• Linear performance warranty: up to 30 years
