Astronergy 505W CHSM54RN(DG)/F-BH Bifacial Black Frame PV Module

(0)
Product ID: 12.0077
Have questions? Call us! +48 572 001 150
Technical Parameters
Full Specification
€84.76
€68.91 net
Have questions? Call us! +48 572 001 150

Recommended Accessories

Some Possible Applications

  • Solar farms – large-scale renewable energy projects
  • Single-family homes – energy savings & independence with storage integration
  • Businesses – lower energy costs and secure power supply
  • On/off-grid systems with hybrid inverters + energy storage
  • Rooftop and ground-mounted installations (rooftop structures and ground structures)

Astronergy 505 W Bifacial N-type TOPCon Solar Module

The Astronergy CHSM54RN(DG)/F-BH 505 W is a state-of-the-art bifacial PV module built on N-type TOPCon 4.0 cells. With dual-glass (2.0 + 2.0 mm) construction and a sleek black frame, it ensures durability, aesthetics, and superior energy yield. Thanks to bifaciality (up to 80 ±5%), the panel delivers up to 23.2% efficiency, performing exceptionally even under low light and high temperatures.

Designed for residential, commercial, and utility-scale applications, it integrates seamlessly with hybrid inverters and energy storage systems, making it a strong choice for renewables (OZE) projects. Installers benefit from standardized dimensions, safe connectors, and long warranty coverage.



Key technical specifications

  • Nominal power: 505 Wp (series range: 495–515 W)
  • Module efficiency: up to 23.2%
  • Technology: N-type TOPCon 4.0, bifacial glass-glass construction
  • Cells: 108 half-cell (6×18) monocrystalline
  • Dimensions: 1961 × 1134 × 30 mm
  • Weight: 27.4 kg
  • Frame: anodized aluminum, black
  • Connectors: HCB40 (standard) / MC4-EVO2A (optional)
  • Cable: 4 mm², (+) 350 mm, (–) 250 mm (custom lengths available)
  • Mechanical load: 5400 Pa (front) / 2400 Pa (back)
  • Voc: ~40.7–41.3 V; Isc: ~15.4–15.8 A
  • Vmpp: ~34.0–34.4 V; Impp: ~14.6–15.0 A
  • Temp. coefficients: Pmax −0.29%/°C, Voc −0.25%/°C, Isc +0.043%/°C
  • Junction box: IP68, 3 bypass diodes
  • Max. system voltage: 1500 V DC
  • Max. fuse rating: 30 A
  • Warranty: 25 years product / 30 years linear power (≤1% 1st year, ≤0.4%/yr)
  • Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001
Pozostałe
  • Low-voltage Kon-TEC 5.12 kWh 100Ah energy storage unit KT-LFPES512100 – compatible with DEYE and Victron inverters. View
  • Niskonapięciowy magazyn energii Kon-TEC 10kWh 100Ah KT-LFPES512100 - kompatybilny DEYE Victron
    10kWh 51.2V Low-Voltage Energy Storage System Kon-TEC – complete stack set – compatible with DEYE and Victron – KT-LFPES512100 View
  • 20kWh 51,2V niskonapięciowy magazyn energii Kon-TEC komplet do stosu - kompatybilny DEYE Victron - KT-LFPES512100
    15 kWh 51.2V low-voltage energy storage system Kon-TEC, complete stack set – compatible with DEYE and Victron – KT-LFPES512100. View
  • 20kWh 51,2V niskonapięciowy magazyn energii Kon-TEC komplet do stosu - kompatybilny DEYE Victron - KT-LFPES512100
    20kWh 51.2V low-voltage energy storage system Kon-TEC – complete stack set – compatible with DEYE and Victron – KT-LFPES512100 View
  • Falownik hybrydowy 10kW Deye, wysokonapięciowy, trójfazowy, Inwerter hybrydowy SUN-10K-SG01HP3-EU
    10kW Deye hybrid inverter, high-voltage, three-phase, hybrid inverter model SUN-10K-SG01HP3-EU View
  • Falownik hybrydowy 12kW Deye, wysokonapięciowy, trójfazowy, Inwerter hybrydowy SUN-12K-SG01HP3-EU-AM2
    12kW Deye hybrid inverter, high-voltage, three-phase – Hybrid Inverter SUN-12K-SG01HP3-EU View
  • Falownik hybrydowy 25kW Deye, wysokonapięciowy, trójfazowy, Inwerter hybrydowy SUN-25K-SG01HP3-EU
    High-voltage 25kW Deye hybrid inverter, three-phase, Hybrid Inverter SUN-25K-SG01HP3-EU View
  • Falownik hybrydowy 35kW Deye, wysokonapięciowy, trójfazowy, Inwerter hybrydowy SUN-35K-SG01HP3-EU
    High-voltage 35kW Deye hybrid inverter, three-phase, Hybrid Inverter SUN-35K-SG01HP3-EU View
  • Falownik hybrydowy 50kW Deye, wysokonapięciowy, trójfazowy, Inwerter hybrydowy SUN-50K-SG01HP3-EU
    High-voltage 50kW Deye hybrid inverter, three-phase, Hybrid Inverter SUN-50K-SG01HP3-EU View
  • Naścienny Niskonapięciowy magazyn energii Kon-TEC 5,12kWh 100Ah KT-LFPES512100 - kompatybilny DEYE Victron
    Kon-TEC 5.12kWh 100Ah Wall-Mounted Low Voltage Energy Storage System KT-LFPES512100 – Compatible with DEYE and Victron. View
  • 51,2 kWh Wysokonapięciowy magazyn energii Kon-TEC KT-LFPHV5.12-10

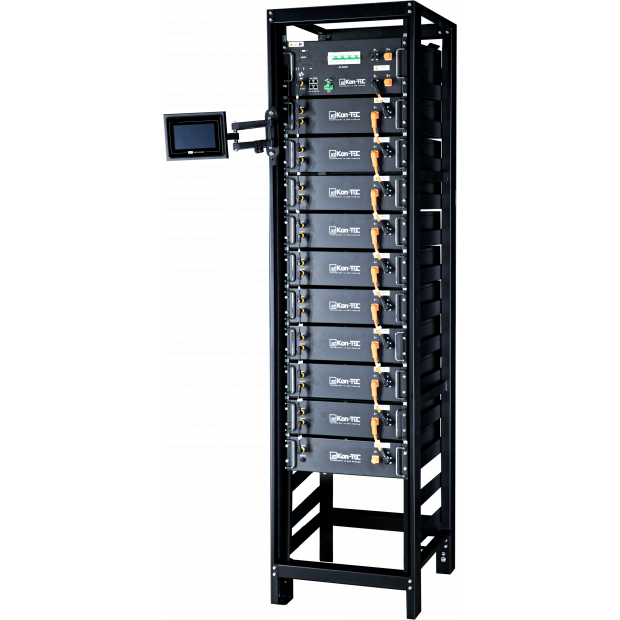

    51.2 kWh High-Voltage Energy Storage System Kon-TEC KT-LFPHV5.12-10 View
  • 56,32 kWh Wysokonapięciowy magazyn energii Kon-TEC KT-LFPHV5.12-11
    56.32 kWh High-Voltage Energy Storage System Kon-TEC KT-LFPHV5.12-11 View
  • 56,32 kWh Wysokonapięciowy magazyn energii Kon-TEC KT-LFPHV5.12-11

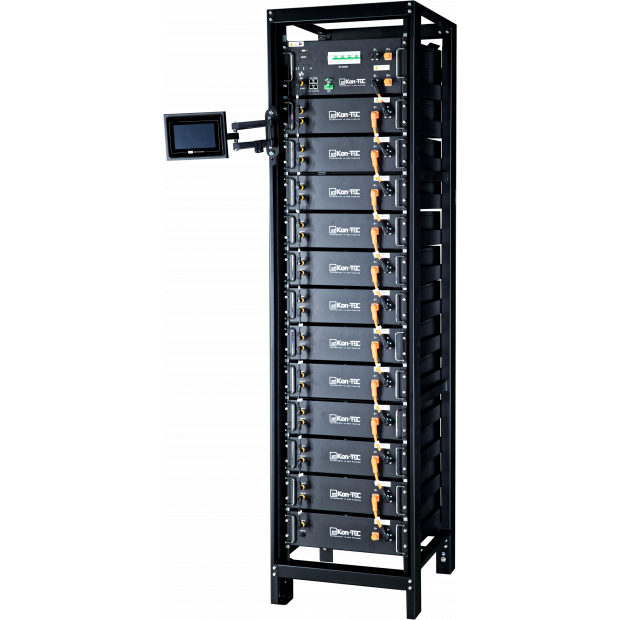

    61.44 kWh High Voltage Energy Storage System Kon-TEC KT-LFPHV5.12-12 View
